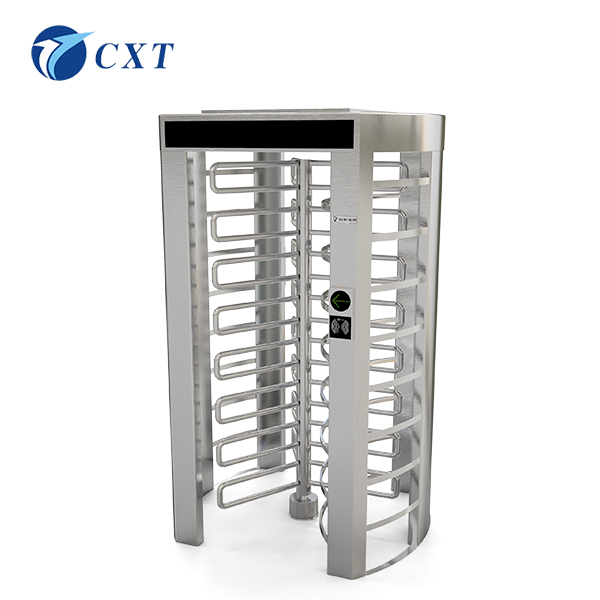

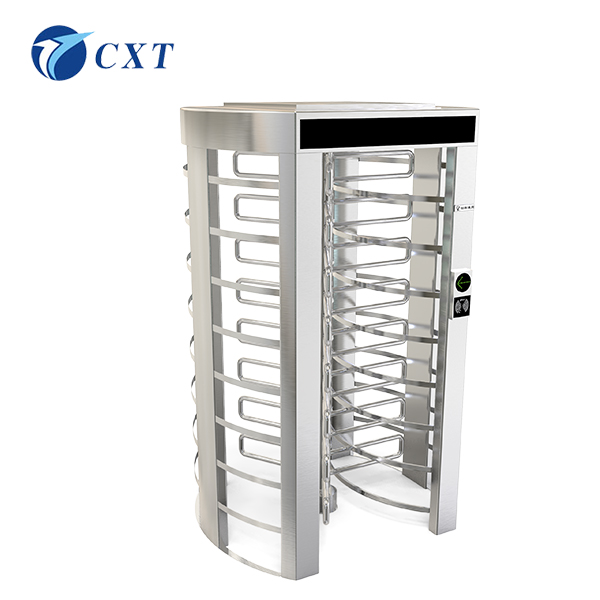

Turnstile CXT-Z170D-120

CXT-Z170D-120 Innovation Pass single door 120 degree full height revolving gate features:

1) It has fault self-checking and alarm prompt functions, which is convenient for users to maintain and use;

2) It can be connected to an external switch button or remote control to achieve one-way or two-way control of passage;

3) It has an automatic reset function. When the gate lever is unlocked, it rotates 120 degrees/90 degrees, which means it is automatically reset (locked). Or if the user does not pass within the specified time, the system will automatically cancel the user's right to pass and automatically close (lock), and the delay is adjustable at 2S, 5S, 10S, and 60S.

4) Anti-collision function, when no gate opening signal is received, the fence bar will automatically lock;

5) Anti-tailgating function, when one person passes, it will turn 120 degrees/90 degrees and automatically lock;

6) Automatic normally open function when power is off to meet the requirements of fire management;

7) It can be connected with a variety of card reading devices and receive relay switch signals to work;

8) One-way and two-way passage function, which can control the entry and exit of personnel in one direction or two directions;

9) Adopting the optical working principle, there is no delay requirement for the input control signal, and it is absolutely avoided that several people pass through with one card;

10) The external button can realize the left and right normally open function;

11) The external button can realize the non-power-off normally open function;

12) Remote control and management can be realized directly through the management computer (need to be customized);

13) The control panel can be connected to the counting function to record the number of people present and realize the forward plus and reverse minus functions (need to be customized).
