Turnstile CXT-C1702F-90

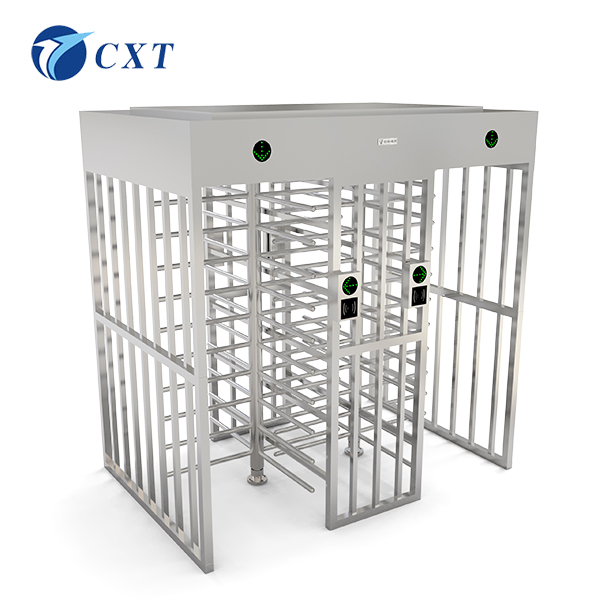

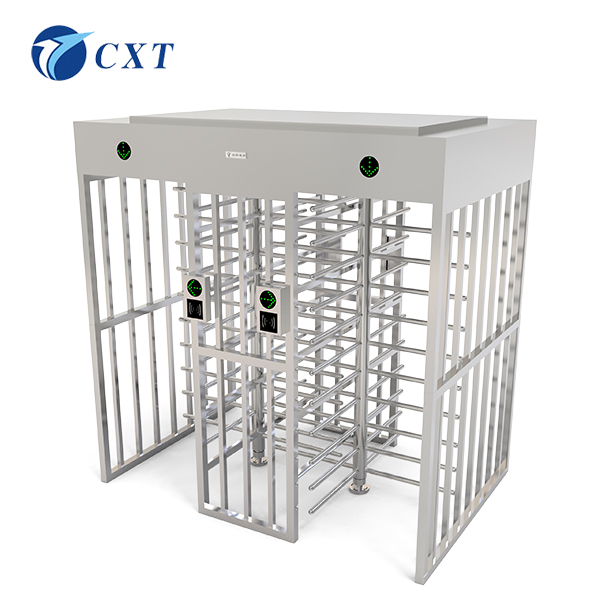

CXT-C1702F-90 double-door turnstile

Main functions and features of full-height double-door turnstile

1) It has fault self-checking and alarm prompt functions, which is convenient for users to maintain and use;

2) It can be connected to an external switch button or remote control to achieve one-way or two-way control of passage;

3) It has an automatic reset function. When the gate bar is unlocked, it rotates 120 degrees/90 degrees, which means it automatically resets (locks). Or if the user does not pass within the specified time, the system will automatically cancel the user's right to pass and automatically close (lock), and the delay is adjustable at 2S, 5S, 10S, and 60S.

4) Anti-collision function, when no gate opening signal is received, the fence bar will automatically lock;

5) Anti-tailgating function, when one person passes, it will turn 120 degrees/90 degrees and automatically lock;

6) Automatic normally open function when power is off to meet the requirements of fire management;

7) It can be connected with a variety of card reading devices and receive relay switch signals to work;

8) One-way and two-way passage function, which can control the entry and exit of personnel in one direction or two directions;

9) Adopting the optical working principle, there is no delay requirement for the input control signal, and it is absolutely avoided that several people pass through with one card;

10) The external button can realize the left and right normally open function;

11) The external button can realize the uninterrupted normally open function;

12) Remote control and management can be realized directly through the management computer (need to be customized);

13) The control panel can be connected to the counting function to record the number of people present and realize the forward addition and reverse subtraction functions (need to be customized).

Standard technical parameters of full-height revolving door

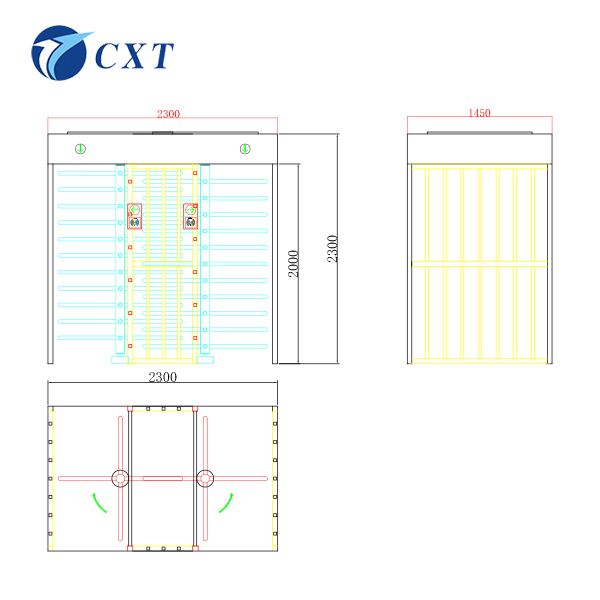

Chassis size: 90 degrees: 2300*1450*2300mm

The outer frame can be customized according to the door opening conditions on site.

Channel width: 570-800mm

Single machine weight: about 200KG

Chassis material: National standard 304 stainless steel frame structure

Processing technology: bending, cutting, welding, polishing, grinding and other processes

Working environment: indoor and outdoor

Power supply voltage: AC220±10% V, 50HZ

Drive motor: DC motor (50W/12V)

Motor speed: 1600 rpm

Input control interface: relay switch signal

Normal service life: 6 million times

Passing speed: 20-25 people/minute

Time required to enter the passing state after power-on: 3 seconds

Automatic reset time after a fault: 10 seconds

Temperature: -40℃—80℃

Humidity: 5%--95%

#Source strength manufacturer #Professional matters are handed over to professionals #Quality first, integrity is the basis undefined avatar Innovation pass Share iframe embedded player:

Innovation full-height double-door turnstiles are widely used in residential areas, schools, stations, prisons, banks, etc.
