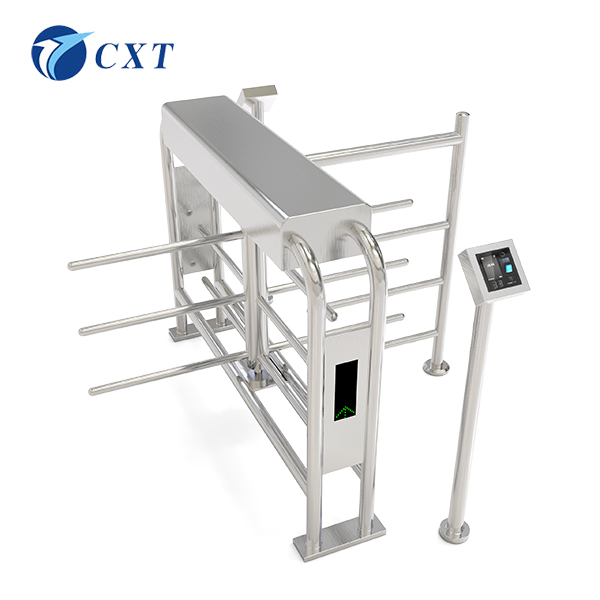

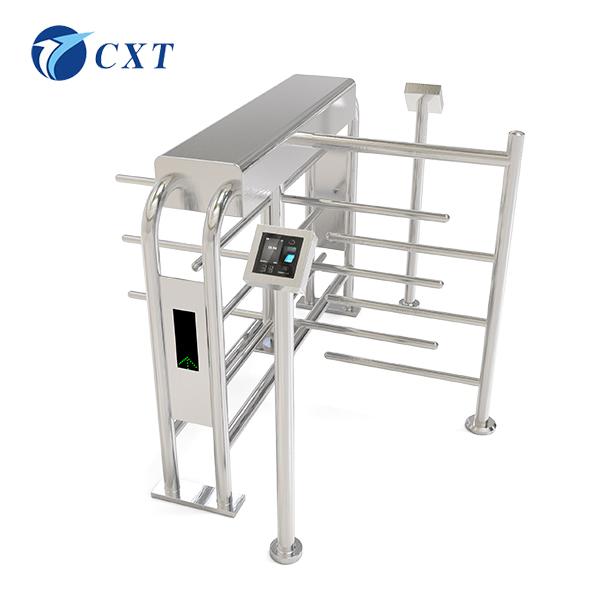

Turnstile CXT-ZT85-A

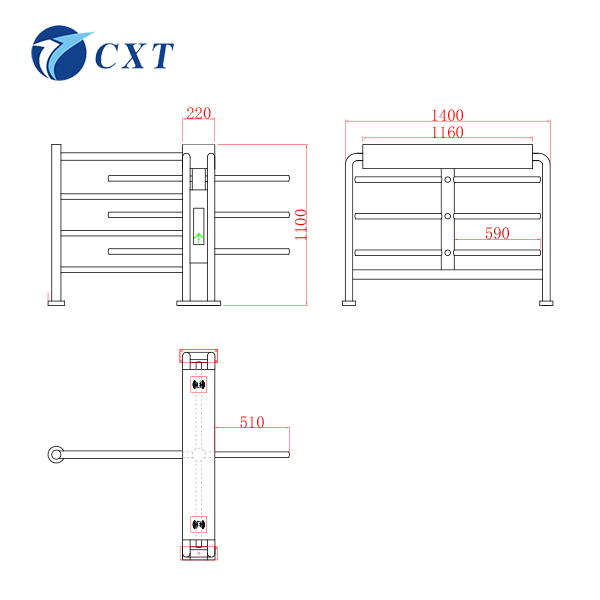

Model: CXT-ZT85-A Specification: 1480*280*1100mm Pole length: 570mm Process: Produced by bending, cutting, welding, polishing, grinding and other processes Material: National standard 304 stainless steel (customizable 201 stainless steel, iron paint)

Half-height turnstile-half-height guardrail turnstile

Functional features of half-height turnstile:

1) It has fault self-checking and alarm prompting functions, which is convenient for users to maintain and use;

2) It has automatic opening when power is off, self-checking when power is on and automatically recovering to the locked state

3) There are multiple working modes to choose from, that is, two-way card reading, card reading on one side and prohibition of the other direction, card reading on one side and free passage in the other direction, and the gate machine working mode can be set through the main board menu.

4) When the pedestrian reads the valid card to pass, the infrared detects that the pedestrian has passed and the gate is automatically closed or the gate is delayed after the pedestrian passes. The delay of 1-60 seconds can be set by the main board menu.

5) It has automatic reset function. After reading a valid card, if the passer fails to pass within the specified time, the system will automatically cancel the passer's access rights, and the restricted access time can be set by the management personnel.

6) It has 485 remote control gate opening and closing functions to meet the special needs of users and fire safety requirements.

7) Anti-collision function, when no gate opening signal is received, the swing arm is automatically locked;

8) Mechanical anti-pinch function, when encountering resistance during the swing arm reset process, it will automatically rebound or the motor will automatically stop working within the specified time, and the force is very small, and an alarm signal will be issued at the same time;

9) It has a unified and standard external electrical interface, which can be connected with various reading and writing devices, which is convenient for system integration, and can be remotely controlled and managed through the management computer.

10) It can automatically count the number of people passing in the direction of passage, and present it to the manager in an intuitive LED (optional) way, so that the manager can know the number of people passing in a certain direction.

11) It has a clear passage direction indication function, with intuitive LED passers-by indicating whether passage is allowed or prohibited.

12) It has card reading with memory and without memory function, and users can set it through the motherboard keyboard according to their needs.

13) Through software settings, the total number of people inside the venue can be limited to meet the special needs of some special occasions.

14) The whole system runs smoothly and with low noise;

Product Features

Environment:indoor/outdoor

Appearance grade:high/middle

Anti-trailing:high

Anti-clip grade:high

Anti-collission:high

Pass group:pedestrian

Comparison parameters Innovation turnstile Market turnstile

Operation mode Electric power hand push

Positioning principle 1/500 decoding Optical coupler fixed point

Locking mode Clutch device Positioning arm

Transmission mode Motor Solenoid valve (external force push)

Reset mode Automatic rotation (finding zero position) Manual (no prompt)

Buffering and anti-collision Yes No

Anti-reversal Yes No

Operation noise No High

Mechanical wear No High

Illegal alarm Yes No

Service life 5-10 years 1-2 years

Smoothness Strong Poor

Pass memory Yes No

Pass prompt Yes No

Feedback signal output Yes No
