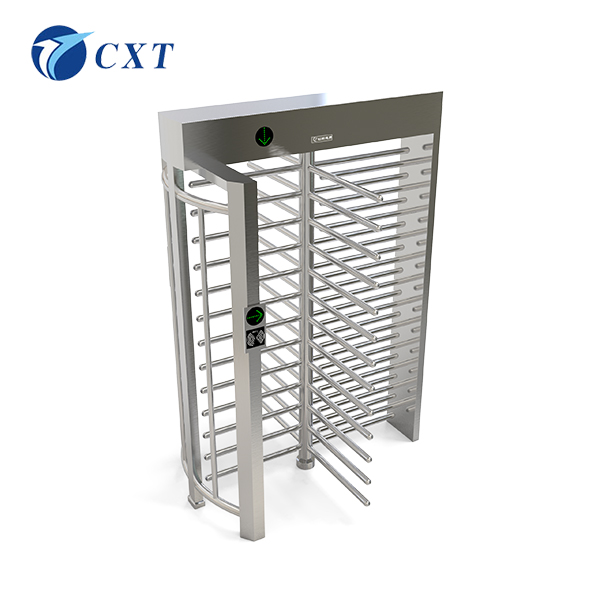

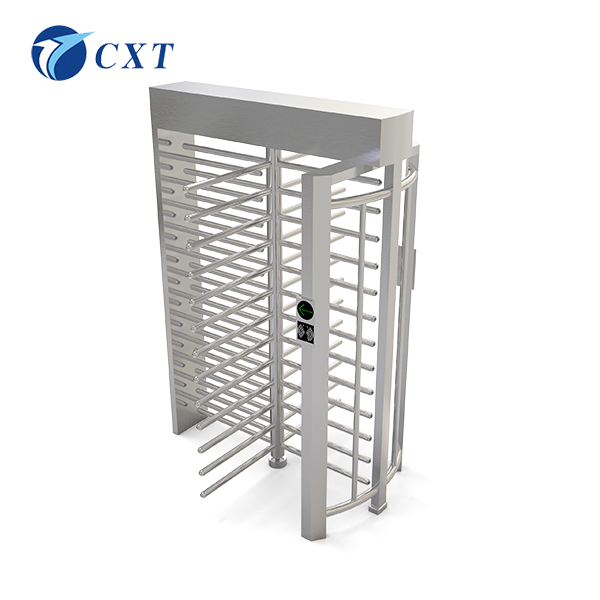

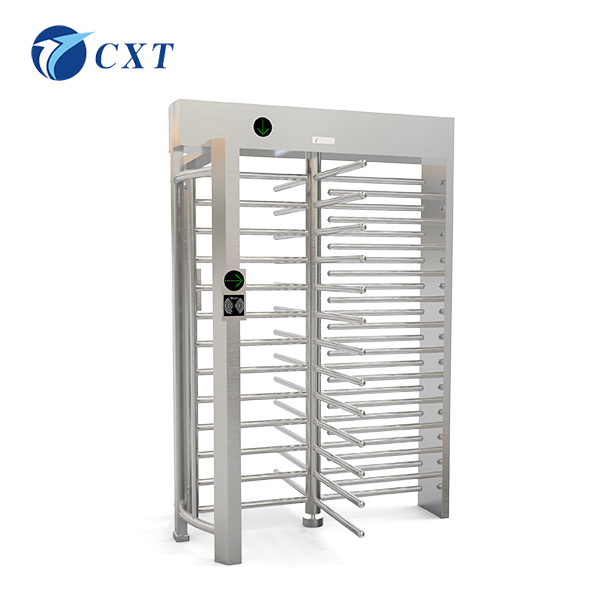

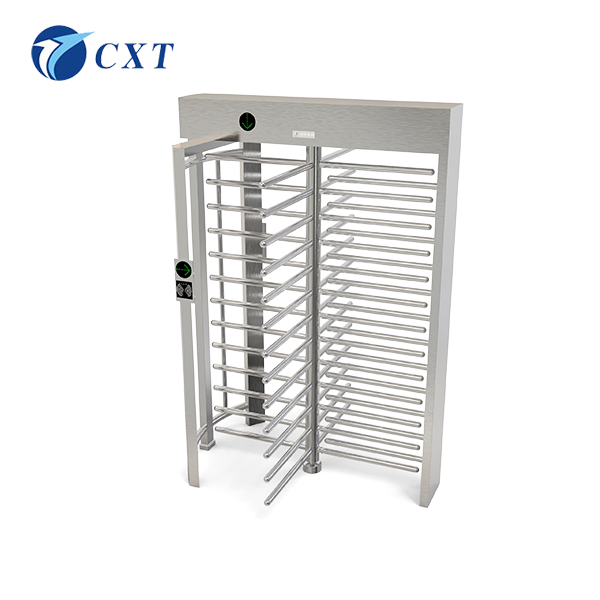

Turnstile CXT-Z1701A-90

Model: CXT-Z1701A-90

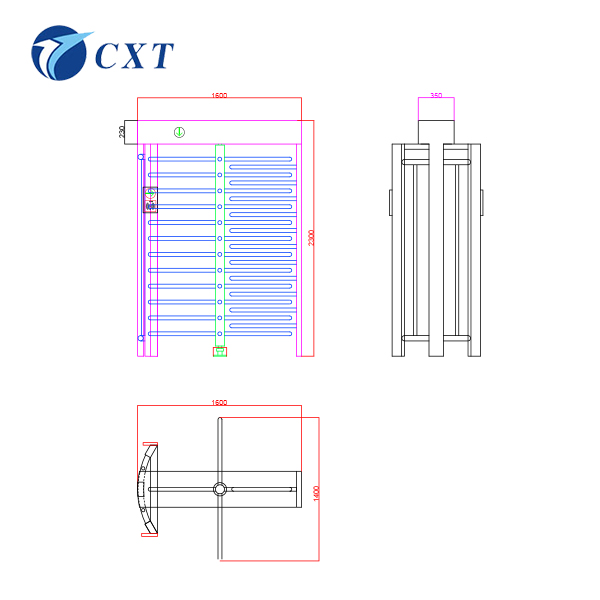

Specifications: 1500*1300*2300mm

Pole length: 570mm Process: Produced by bending, cutting, welding, polishing, grinding and other processes

Material: National standard 304 stainless steel (customizable 201 stainless steel, iron paint)

Cross turnstile-full height cross turnstile

When the CXT-BT1701 full height turnstile passes illegally or rushes through the gate, it will automatically issue an alarm prompt. When the gate passes illegally or rushes through the gate, the gate rod will automatically rotate to the corresponding angle and then lock, realizing humanized injury prevention. When the external force disappears, it will automatically reset.

CXT-BT1701 full height turnstile can be expanded:

1. Remote control and management through the management computer (command docking is required).

2. Counting function to realize the number of people present.

3. Personalized voice prompt function makes the channel closer to life.

Full-height cross turnstile features:

1) It has fault self-check and alarm prompt functions, which is convenient for user maintenance and use;

2) It has the function of automatic opening when power is off, self-checking when incoming calls and automatically restoring to the locked state

3) There are multiple working modes to choose from, that is, two-way card reading, one side card reading and the other direction is prohibited, one side card reading and the other direction is free to pass, and the gate machine working mode can be set through the main board menu.

4) When the pedestrian reads the valid card to pass, the infrared detects that the pedestrian has passed and the gate is automatically closed or the gate is delayed after the pedestrian passes. The delay of 1-60 seconds can be set by the main board menu.

5) It has an automatic reset function. When the passerby does not pass within the specified time after reading the valid card, the system will automatically cancel the passerby's access right this time, and the restricted access time can be set by the management personnel.

6) It has 485 remote control of gate opening and closing functions to meet the special needs of users and fire safety requirements.

7) Anti-collision function: when no gate opening signal is received, the swing arm automatically locks;

8) Mechanical anti-pinch function: when encountering resistance during the swing arm resetting process, it automatically rebounds or the motor automatically stops working within the specified time, and the force is very small, and an alarm signal is issued at the same time;

9) It has a unified and standard external electrical interface, which can be connected with various reading and writing devices, which is convenient for system integration, and can be remotely controlled and managed through the management computer.

10) The number of people passing in the direction of passage can be automatically counted and presented to the manager in an intuitive LED (optional) way, so that the manager can know the number of people passing in a certain direction.

11) It has a clear direction of passage indication function, with intuitive LED passers-by indicating whether passage is allowed or prohibited.

12) It has card reading with memory and without memory function, and users can set it through the motherboard keyboard according to their needs.

13) Through software settings, the total number of people inside the venue can be limited to meet the special needs of some special occasions.

14) The entire system operates smoothly and has low noise;

Prodct Functions

1.Easy operation and convenient maintenance with functions of breakdown self check and alarm.

2.High end Waist height Turnstile can be linked with any external control device and receive the signalby button or remote control, thus to realize one or bi-direction passing control.

3.Auto reset function: Arm rotates 120/90 degree and auto resets after detection of human/objects’ passing ,or auto cancels passing right and resets if there has no valid passing within specified time.

4.Lighting indicator:High brightness passing indication.

5.Anti-follow function: Arm rotates 120/90 degree for single passing, and will auto lock and alarm if there has trailing.

6.Can be connected to the fire alarm signal, to realize continuous electric pole normal open to evacuate people.

7.Memory function: Accurate signal memory, be able to receive many legitimate signals continuously and when the last passing is detected, system will auto reset, which greatly improve the access speed.(this function can be realized by dialing up selection)

8.Power rotation function: legal reception, nudging power turning, run no impact on the smooth and soft

9.Alarm prompt function: Auto alarm for illegal passing or impact.

10Anti reverse function: Arm locks and alarms in case of reverse, return to normal passing when reverse force disappeared.

11.Anti buffering function: Arm holds tightly after rotating corresponding angle to realize humanized protection .and auto reset when the external force disappears.

12.Normal open in case of power failure, detect and reset when power is on.

13.Fast mute: Electric power-assisted, mechanical zero wear and tear.

14.Transit speed of High end waist height turnstile is above 60people/minute

Extensible function:

Realize remote control and management via computer(instruction docking

is required)Counting function, Real time people counting.Individuation voice prompt function.

Passage tips, power rotation. Smooth operation and no noise;

Free passage setting. Buffering, anti-collision, anti-reversal;

Single or two-way passage can be set arbitrarily;

With fault self-detection and alarm prompt function, convenient for user use and maintenance;

Automatically open when power off, automatically detect and reset when power on.
