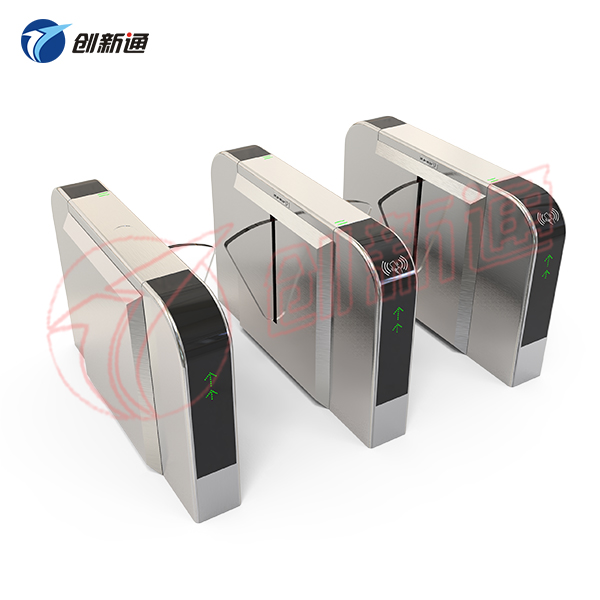

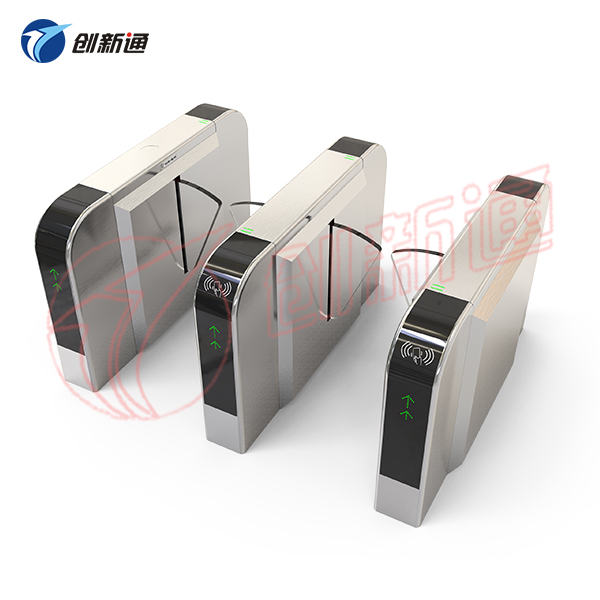

Wing Gate CXT-YW160A

Model: CXT-YW160A Specifications: 1600*300*1000MM Rod length: Channel width 570mm Process: Produced by bending, cutting, welding, polishing, grinding and other processes Material: 304 stainless steel

Brand: Chuangxintong

Model: CXT-YW160A

Product name: Brushless fast wing gate

Specifications: 1600x300x1000mm

Time to market: 2019

Applicable places: Airports, office buildings, stations, schools, scenic spots, venues, high-end communities

Material: 304 stainless steel

Product Overview

Chuangxintong brushless fast wing gate is a new high-tech patented channel product upgraded to address the defects and deficiencies of the general series wing gate. The product adopts a new ARM control system and advanced brushless motor industrial-grade control circuit and unique DFC technology, coupled with the unique transmission technology of the brushless motor and accurate limit technology, so that the product has been revolutionary in terms of performance, life, speed, noise, stability and other aspects.

Unique advantages of fast wing gate:

Adopting brushless motor technology, longer life;

Adopting ARM control technology and DFC technology, more powerful functions and better scalability;

Faster speed, the switching speed can reach ≤0.5S;

Lower sound, up to ≤30 decibels;

Smoother operation, no shaking, no trembling, no echo.

Function introduction:

It has fault self-detection and logic judgment functions, which is convenient for users to maintain and debug functions;

Flexible setting of various performances, up to dozens of types, and easy to expand;

Triple anti-pinch function (infrared anti-pinch, mechanical anti-pinch, rebound when encountering obstacles);

Multiple mode alarm functions, including illegal intrusion, anti-intrusion, tailing, and passage timeout alarms;

Anti-collision function, when no gate opening signal is received, the barrier arm is automatically locked;

Reverse intrusion closing alarm function, when someone breaks in from the reverse direction after swiping the card in the forward direction, the barrier wing is quickly closed and an alarm is issued;

Flexible passage indication function, high-brightness indicator light plus its humanized prompt function, make the channel more distinctive ;

Normally open and normally closed modes are adjustable, and can be easily controlled by settings or external manual buttons;

Automatic detection and reset function. After the gate is opened, if no object is detected within the specified time (adjustable), the system will automatically cancel the access permission;

Automatically open when power is off to meet fire protection requirements;

Can be connected to a variety of control devices and receive relay switch signals to work;

Various access modes, can control personnel entry and exit in one direction or two directions, or be controlled in one direction and free to pass in the opposite direction;

Strong ability to adapt to the environment, can work normally in various harsh environments, super strong self-protection ability, can adapt to weak current short circuit, strong light exposure, fog, rain, snow, typhoon weather and environmental changes.

Technical parameters:

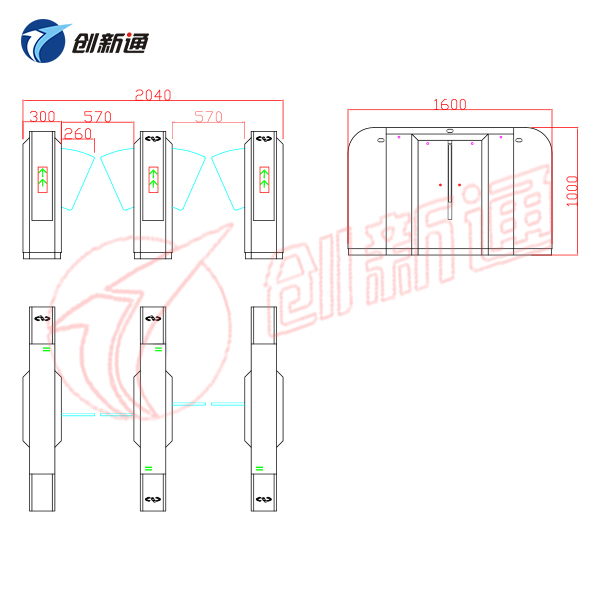

Chassis size: 1600 length * 300 width * 1000 height (MM) / according to various styles

Processing technology: produced by bending, cutting, welding, polishing, grinding and other processes

Telescopic arm: extended width of about 260mm, thickness of 12-15MM, transparent organic board (optional soft wing)

Passing width: 570MM

Machine weight: about 50Kg (single movement), about 70KG (double movement)

Chassis material: standard 304 stainless steel frame structure

Working environment: indoor or outdoor (with rainproof rack)

Access voltage: AC220±10V, 50HZ

Drive motor: DC brushless motor (40W/24V)

Input interface: relay switch signal

Normal service life: ≥10 million times

Humidity: 5%--90%, working temperature: -40℃—— 80℃

Passing speed: 30-40 people/minute

Gate opening and closing time: 0.4-1 second adjustable
